Molybdenum (Mo) – Custom Machined Parts

Molybdenum is the most versatile and machinable of refractory metals, which can be machined by all of the common metal machining processes. It is used in a wide range of high temperature applications due to its thermal properties including excellent high-temperature strength and good thermal and electrical conductivity.

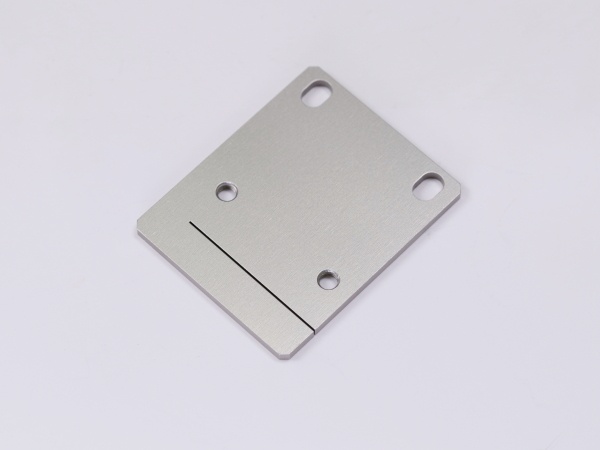

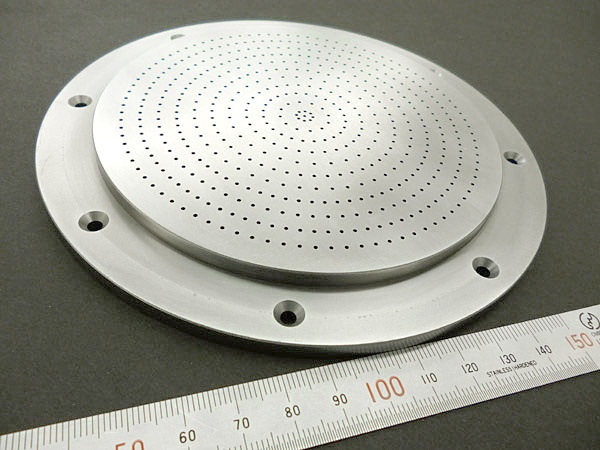

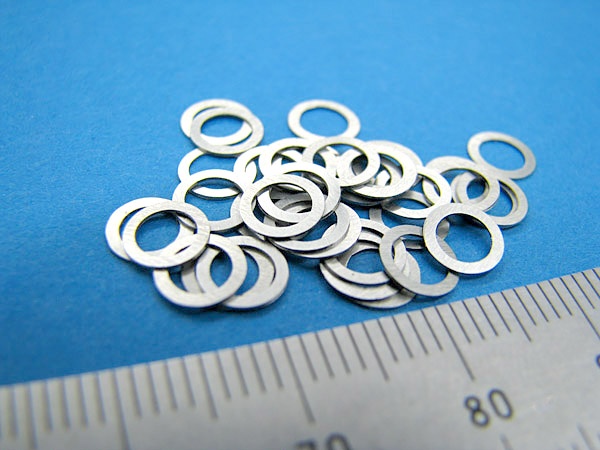

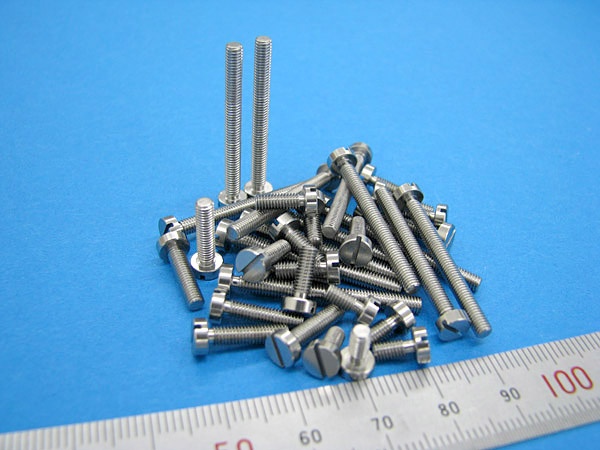

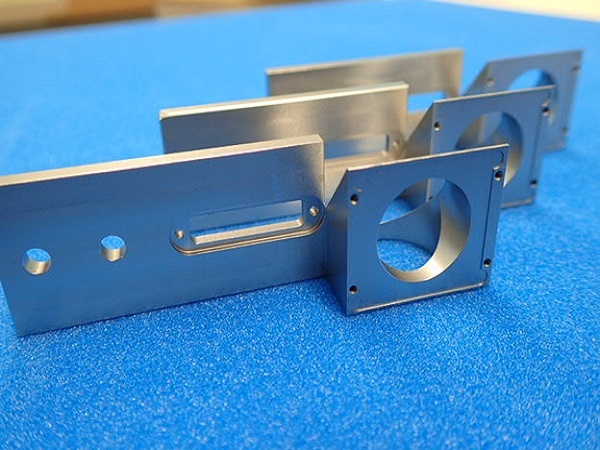

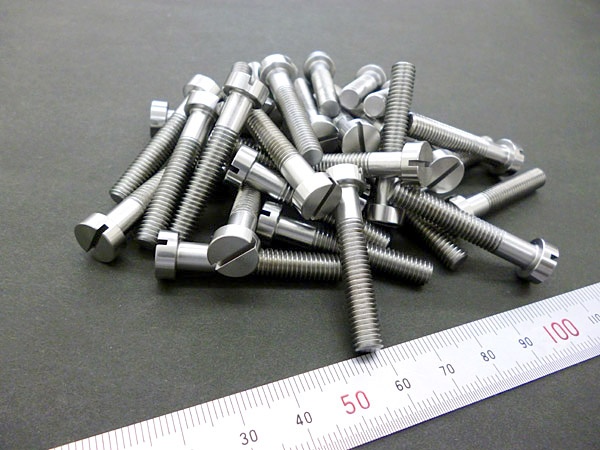

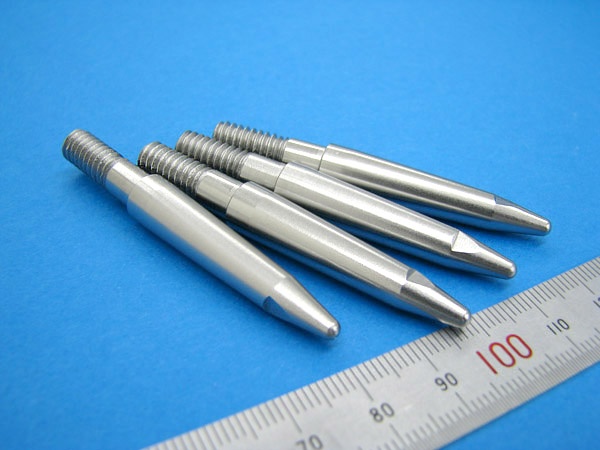

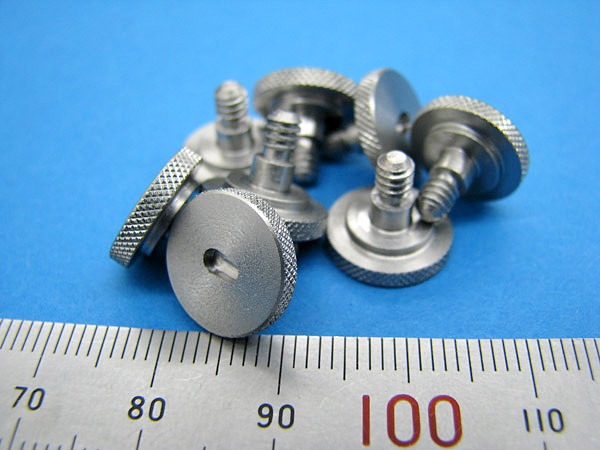

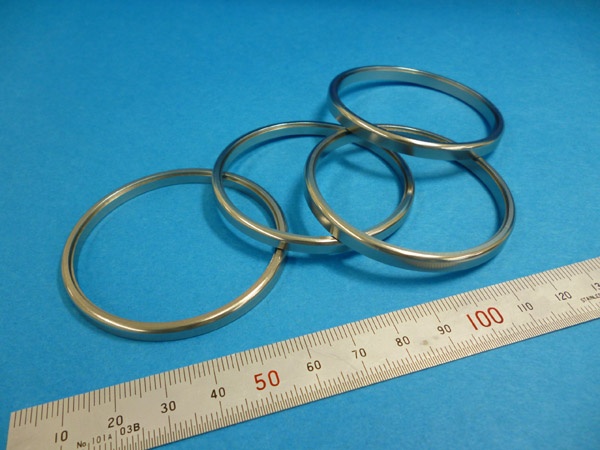

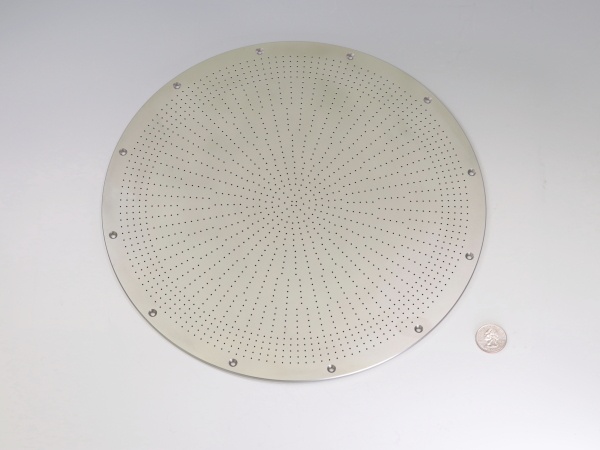

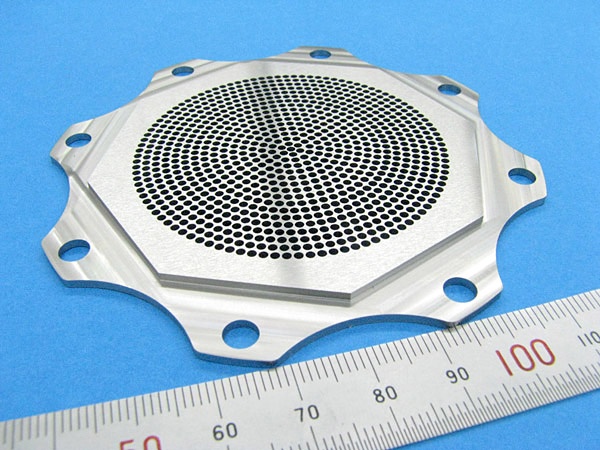

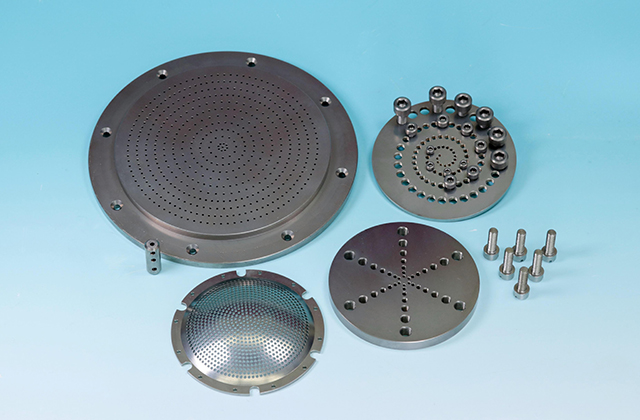

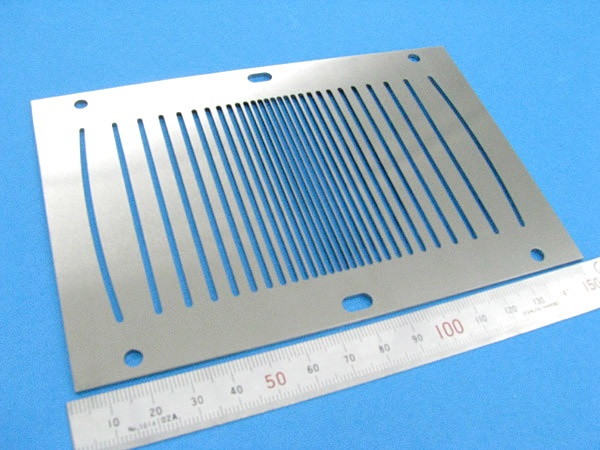

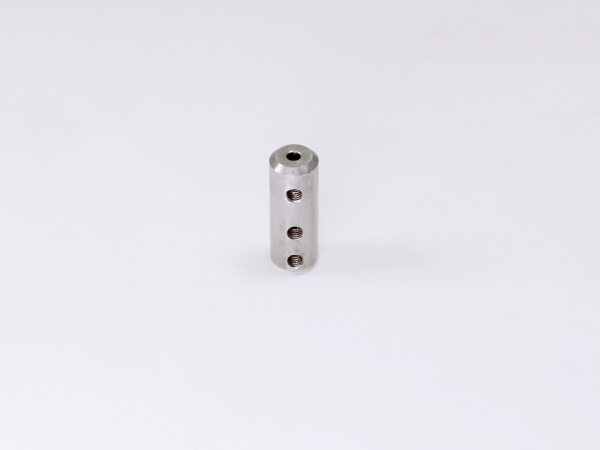

China Ceramic machining has extensive experience and expertise in producing custom-machined molybdenum parts including very complex parts and very small intricate parts. We stock molybdenum in various sizes and thickness to shorten lead times for customers with urgent needs.

Molybdenum Properties

Property (Unit)	Purity (%)	Bulk Density (g/㎤）	Vickers Hardness (GPa)	Young’s Modulus (GPa)	Melting Point (℃)	Recrystallization Temperature (℃)	Coefficient of Thermal Expansion （×10-⁶/℃）	Thermal Conductivity (W/(m・K))	Volume Resistivity (Ω･㎝)
Chemical Formula	Purity (%)	Bulk Density (g/㎤）	Vickers Hardness (GPa)	Young’s Modulus (GPa)	Melting Point (℃)	Recrystallization Temperature (℃)	Coefficient of Thermal Expansion （×10-⁶/℃）	Thermal Conductivity (W/(m・K))	Volume Resistivity (Ω･㎝)
Mo	99.95～	10.2	1.5	327	2,623	1,000～1,200	5.1 (RT)	142 (20℃)	5.7 ×10-⁶

For more information, see Material Guide

Molybdenum – Key Properties & Popular Applications

Key Properties		Applications

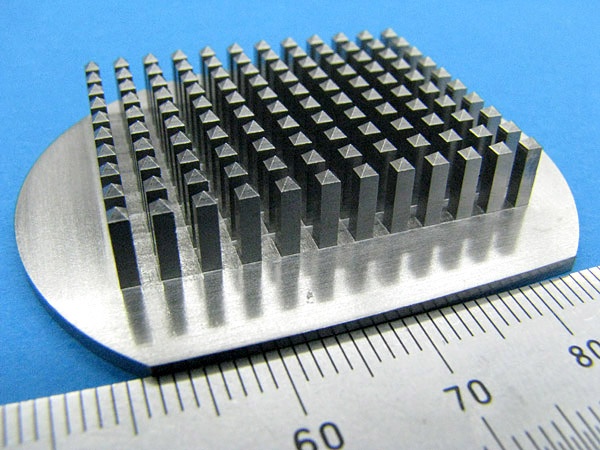

■Excellent High-Temperature Strength ■Low thermal expansion ■High thermal conductivity	Molybdenum has extremely high melting temperature and can retain its strength at high temperatures. Combined with its low thermal expansion, it resists distortion and warping at elevated temperatures. In fact, it has a coefficient of thermal expansion close to that of Alumina (Al2O3). Also, molybdenum transfers heat quickly and efficiently due to its high thermal conductivity.	■Parts subject to extremely high temperatures ■Precision parts ■Parts requiring high-temperature dimensional stability ■Heat transfer components used at high temperatures such as heat sinks and heat spreaders ■Heaters & Terminal pins installed in ceramic components ■Electrodes
Good Machinability	Having good machinability, molybdenum can be machined into complex and precision parts. Since machining molybdenum generates low residual stresses, geometric tolerances (E.g. flatness and parallelism) can be achieved relatively easily.
Good Corrosion Resistance	Molybdenum has good resistance to corrosion by non-oxidizing mineral and organic acids (including hydrofluoric acid unlike other metals). It is also resistant to many molten materials such as metals and glasses.

Available Sizes and Machining Capability

Availability	Sizes(mm)	Machining Capability	Sizes(mm)

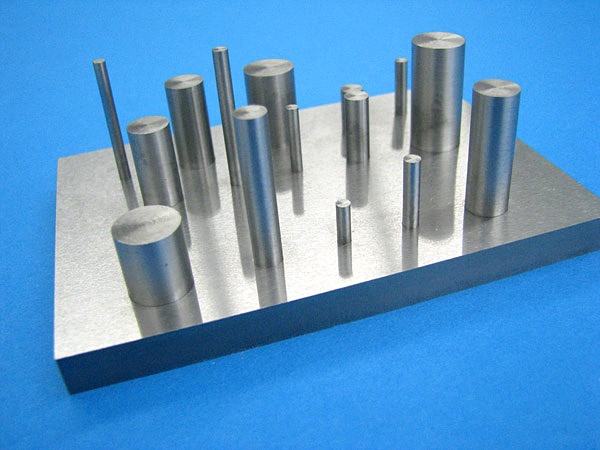

Plate	500×800×30	Hole depth	Φ0.03～
Rod	Φ100×500	Hole diameter	φ0.03 or more
Groove width	0.1 or more	Max. hole number	10,000
Max. Groove(pocket) depth	100	Thread size	M1 or more
