High Precision / Micro Machining Services

China Ceramic machining provides high precision and micro machining services for a wide variety of exotic hard materials. Our well-equipped & maintained facilities combined with our in-depth knowledge and extensive machining experience of hard materials, we manufacture highest quality custom machined parts.

Manufacturing environment	All processes are carried out in climate controlled environment. Anti-vibration countermeasures are taken for the floors.
Equipment	With continuous investment in facilities, machines and equipment are kept up-to-date. To maintain the accuracy, all machines are daily checked and regularly maintained. To maintain the accuracy, all machines are daily checked and regularly maintained.
Tools	Tools are designed by China Ceramic machining and then custom-made by tool manufactures or produced by ourselves. We carry out test machining to elucidate mechanisms of grinding and cutting, and to develop the most suitable tools.
Fixtures / Jigs	We design and make fixtures / jigs if needed.
Staff	We have many highly-skilled and experienced staff. Our education and training programs aim to continuously equip our staff with knowledge and skills.
Machining conditions	With our accumulated machining data, optimal machining conditions for each project can be easily and quickly decided. If needed, we carry out test machining, and then proceed with the actual production based on machining data acquired from the test.
Knowledge of materials	As an expert of hard materials, we are constantly seeking to expand the knowledge about hard materials essential to maintain our high quality precision machining service.
Materials we machine include	Advanced Ceramics, Quartz Glass, Glass Ceramics, Tempax, Silicon, Machinable Ceramics, Metal Ceramic Composite Materials, Molybdenum, Tungsten, Tantalum and etc.
Quality Assurance	Each product goes through inspection by our well-trained staff who have both knowledge and skills required to carry out the inspection properly. All inspection & measuring equipment is daily checked and regularly calibrated to maintain the accuracy. For your special inspection needs, inspections by external inspection organization such as Industrial Research Institute are also available up on request.

Machining Tolerances for High Precision / Micro Machining Parts

Features	Tolerances (unit: mm)
Features	Normal	Tight
Pitch	±0.05	±0.003
Inner/Outer Diameter	±0.05	±0.003
Thickness	±0.05	±0.002
Height of Step / Column	±0.05	±0.003
Depth of Counterbore	±0.05	±0.003
Hole Diameter	±0.1	±0.005
Thread	Go: inspected with a thread gauge	No go: inspected with a pin gauge of the pilot hole size
Flatness	0.05	0.003
Parallelism	0.05	0.005
Roundness	0.05	0.005
Cylindricity	0.05～0.1	0.005
Surface Roughness	Ra0.8	Ra0.05

Machining samples

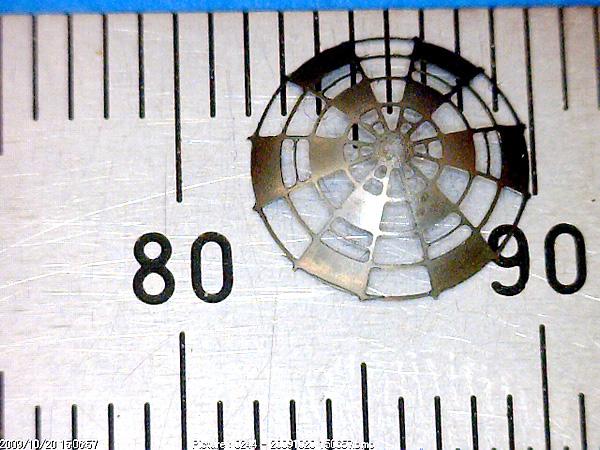

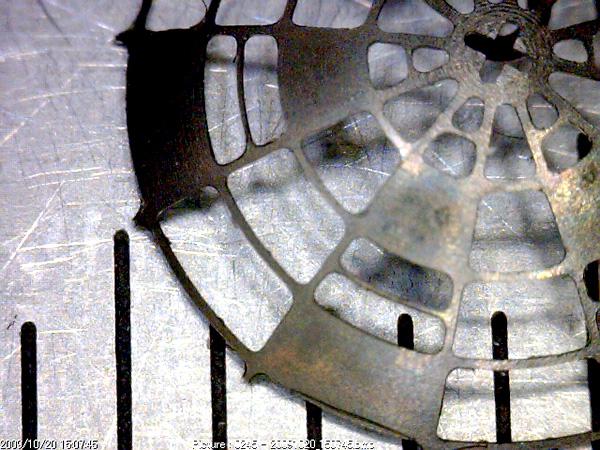

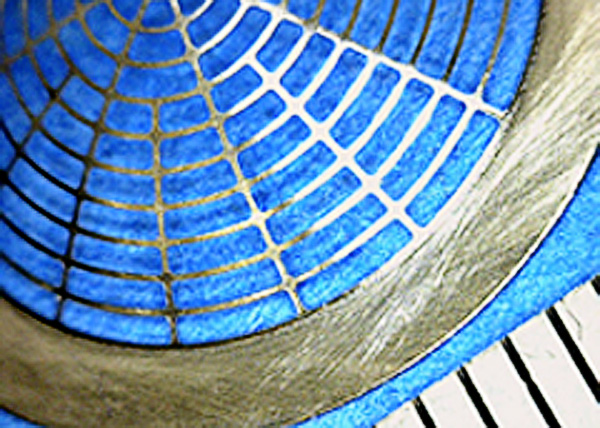

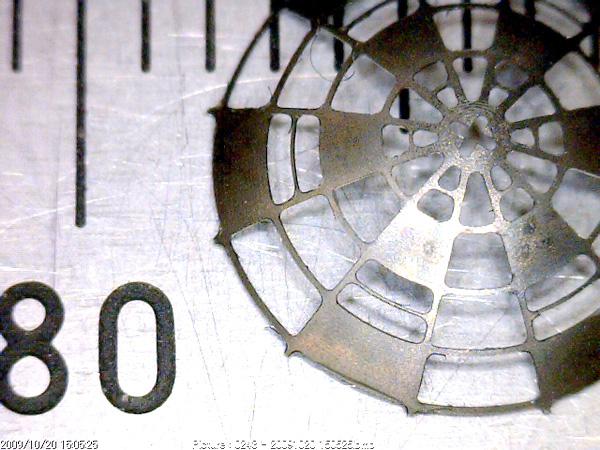

Molybdenum Custom Machined Sample

Molybdenum Custom Machined Sample: Thickness 0.05, Frame width: 0.05

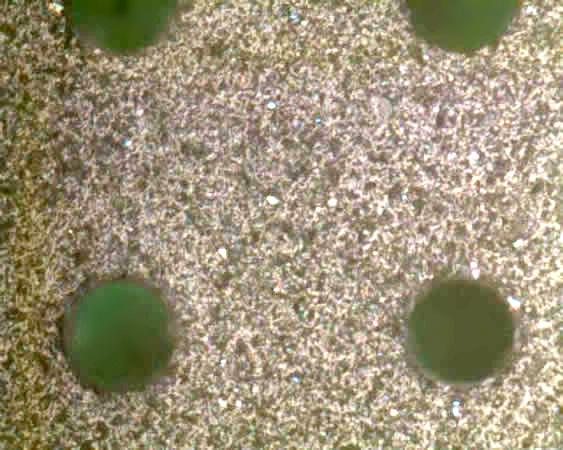

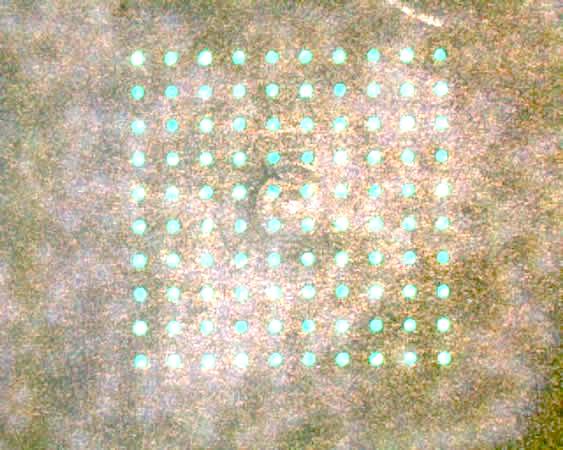

Probe Guard Jig

Probe Guard Jig: φ0.07 x 100 PL for Machinable Ceramics

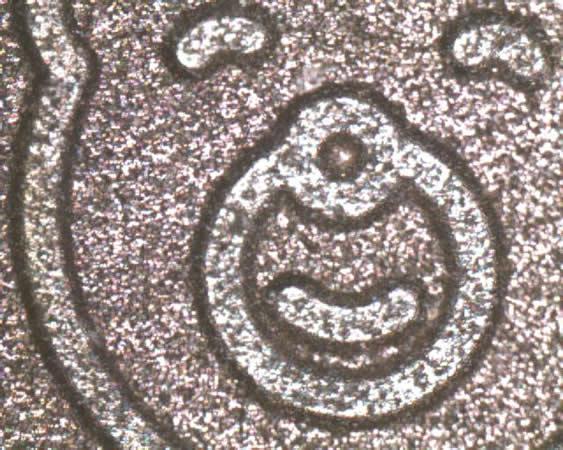

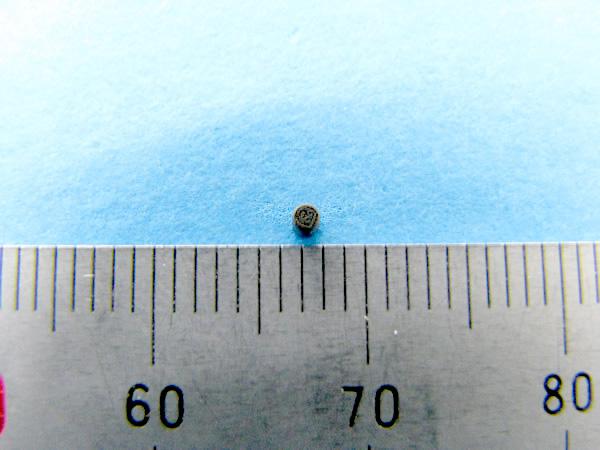

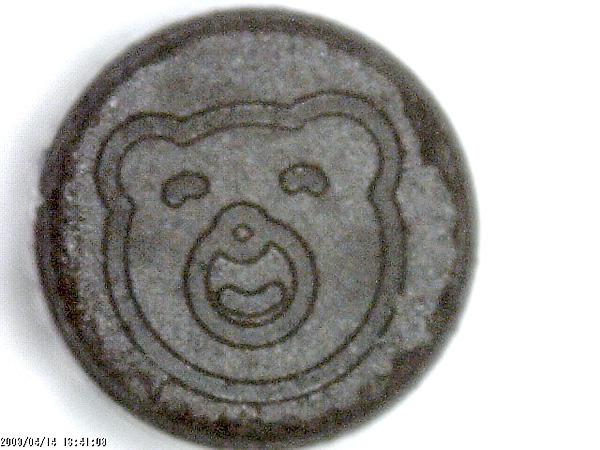

Micro Machined Product

φ Size: φ1 x thickness 1mm
Material: Black Alumina
The groove width and depth are 0.07 mm.
